How to deploy a Streamlit Application on Hugging Face

In this guide, we'll walk through the steps to deploy a Streamlit app using the Hugging Face platform. For demonstration purposes, we'll create an app that utilizes the Python module Pix2Tex. Users will be able to upload an image and get the corresponding LaTeX formula along with a rendered version.

Prerequisites

  1. Create a virtual environment:
python3 -m venv myenv
source myenv/bin/activate

python -m venv myenv
./myenv/Scripts/activate

  1. Install dependencies:

    pip install streamlit pix2tex pillow

Creating the Streamlit App

  1. Create the app.py file with your Streamlit app code.

    # app.py
import streamlit as st
from PIL import Image
from pix2tex.cli import LatexOCR

def main():
    st.title("Image to LaTeX Formula Parser")

    # Upload image through Streamlit
    uploaded_image = st.file_uploader("Upload an image", type=["jpg", "jpeg", "png"])

    if uploaded_image is not None:
        # Display the uploaded image
        st.image(uploaded_image, caption="Uploaded Image", use_column_width=True)

        # Perform LaTeX OCR on the uploaded image
        latex_formula = process_image(uploaded_image)

        # Display LaTeX formula
        st.subheader("LaTeX Formula:")
        st.text(latex_formula)

        # Display parsed Markdown
        parsed_md = parse_to_md(latex_formula)
        st.subheader("Parsed Markdown:")
        st.latex(f"\n{latex_formula}\n")

def process_image(image):
    # Perform LaTeX OCR on the image
    img = Image.open(image)
    model = LatexOCR()
    latex_formula = model(img)
    return latex_formula

def parse_to_md(latex_formula):
    # You can implement your own logic to parse LaTeX to Markdown
    # Here's a simple example for demonstration purposes
    parsed_md = f"**Parsed Formula:** *{latex_formula}*"
    return parsed_md

if __name__ == "__main__":
    main()

  2. Test the app locally:

    streamlit run app.py

Deploying on Hugging Face

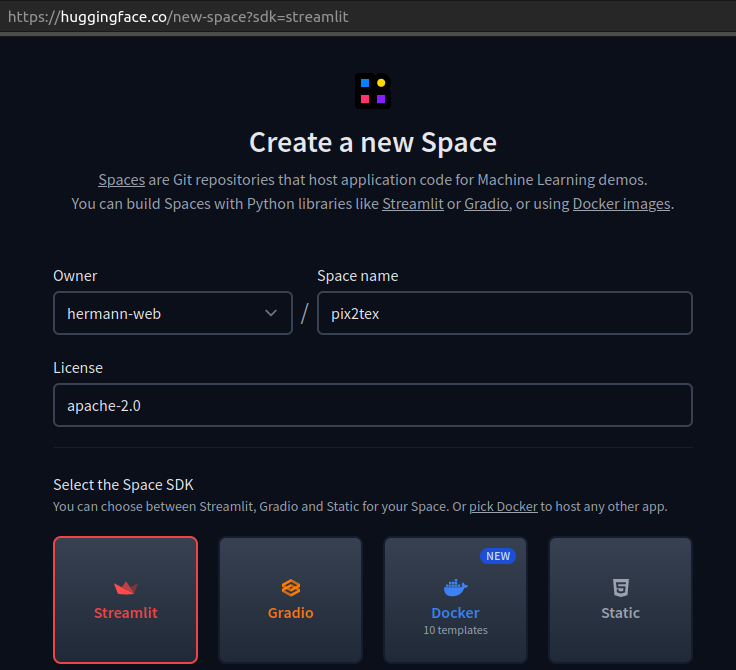

  1. Create a new Hugging Face space:

    creating new space

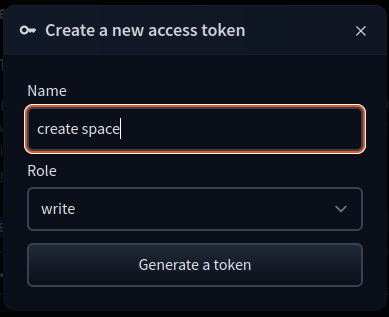

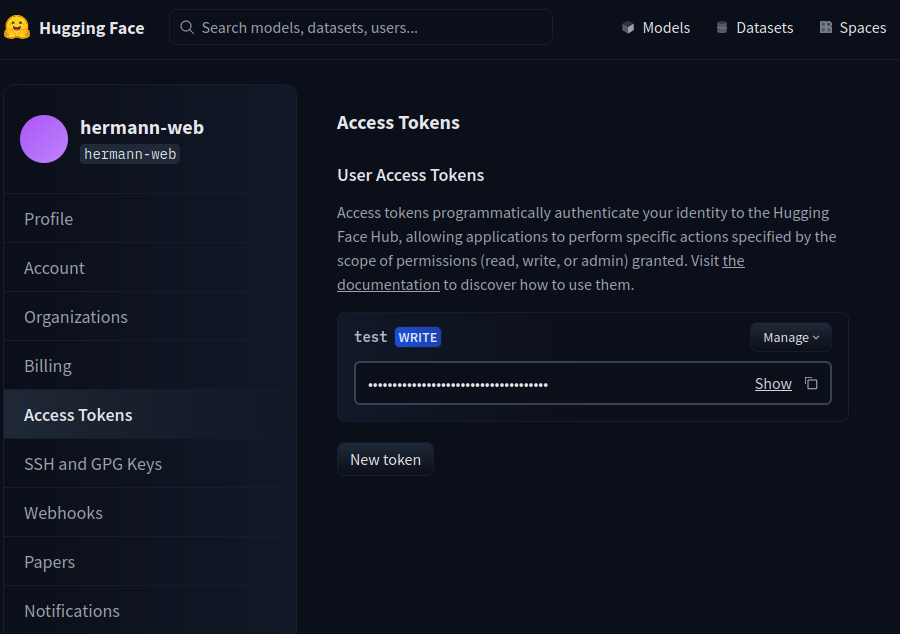

  2. Create a Hugging Face token:

    generate new token generate new token

  3. Clone the repository and push your app:

    • clone the repo

      git clone https://<user_name>:<token>@huggingface.co/<user_name>/<repo_name>
cd <repo_name>

    the token is from step 6 - add app.py and requirements.txt into the folder - push the changes to huggingface

    ```bash
git add .
git commit -m "Add application"
git push
```

    • example

      git clone https://hermann-web:hf_****@huggingface.co/spaces/hermann-web/pix2tex
cd pix2tex
mv ../app.py app.py
pip freeze > requirements.txt
git add .
git commit -m "Add application"
git push

  4. Check your deployed application online:

    • Visit Hugging Face Repository https://huggingface.co/<user_name>/<repo_name>.

    streamlit app on huggingface

Congratulations! Your Streamlit app is now deployed on Hugging Face. You can find a live example on https://huggingface.co/spaces/hermann-web/pix2tex.
